Product Number: EX20060013
|Model: PROCAT 800

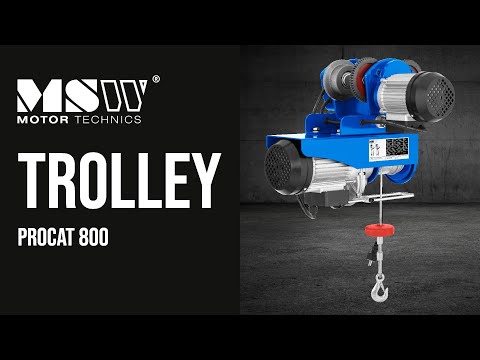

Factory second Electric Hoist with Trolley - 800 kg
On Sale
Seconds
Our factory seconds are generally refurbished customer returns or former display items. The products may have cosmetic defects but are technically flawless. As usual, we provide the normal right of return and warranty.
£223.00
£279.00
Sold out
Lowest price guaranteed
Key features
- Strong traction – lifts loads up to 800 kg
- Easy cargo access – pulley swivels 360°
- Fast lifting – 8 m/min without and 4 m/min with pulley
- Flexible routing – agile push trolley also suitable for curved tracks
- Easy to use – 2.4 m long wired remote control with strain relief
Delivery details
Spare parts
Premium Guarantee
User Manual
Laufkatze 800Kg
Was at home with me within 3 days. Thank you
Technical details
Load hook
Yes
Rope length
12 m
Remote cable
2.4 m
Remote control
Yes
Traverse speed
13 m/mn
Block with a hook
Yes
Rope diameter
5.1 mm
Electric motor - Power
1300 W
Tensile strength of rope
2000 kg
Crane electric motor - Power
540 W
Lowering speed - single draft
9.6 m/mn
Minimum radius of the curve
1 m
Max lifting height - single draft
12 m
Lifting speed- deflection roller
4 m/mn
Lifting performance - single draft
400 kg
Lowering speed- deflection roller
4.8 m/mn
Max lifting height - deflection roller
6 m
Lifting performance - deflection roller
800 kg
Colour
Blue
Voltage [V]
230
Rope material
Steel CK 45
Type of grease
EP
Electric motor - Isolation
B
Crane electric motor - Isolation
B
Electric motor - Protection class
IP 54
Electric motor - Intermittent duty
S3 20 % - 10 min
Crane electric motor - Protection class
IP20
Crane electric motor - Intermittent duty
S3 20 % - 10 min
Dimensions (LxWxH)
44 x 42 x 38 cm
Weight
35.5 kg
Shipping dimensions (LxWxH)
55 x 49 x 49 cm
Shipping weight
39.2 kg
Delivery package
- Beam Trolley PROCAT 800
- Electric wire rope winch
- Pulley
Product Description
Versatile and powerful: The electric wire rope hoist for loads up to 800 kg
The electric wire rope hoist trolley from MSW is perfect for large warehouses or enclosed indoor areas, and can also be used outdoors. With the 13 m/min trolley, you can move heavy loads fast – even along curved paths – provided the curve radius is at least 1 m. The electric cable hoist uses a 12 m durable steel rope with a traction capacity of 400 kg. The CK45 cable is twist-proof, wear-resistant and therefore extremely durable. With the pulley, the traction increases to 800 kg. The lifting height is then 6 m, and the lifting speed is halved from 8 m/min to 4 m/min.
Safety first: Your electric hoist with beam trolley, overload protection, and safety lock
Cargo is always securely held in place with the electric wire hoist. There is a safety lock on the charging hook for this purpose. Overload protection ensures the trolley works reliably for extended periods and keeps the 1300 W motor from overheating. The electromagnetic braking system ensures smooth operation. Easy access to the load from all sides is made possible by the 360° swivelling deflection hook. You control the hoist via a 2.4 m long cable remote. Attach the MSW trolley to a steel beam with a width of 68 - 94 mm and a minimum height of 110 mm. Suitable steel profiles include wide flange beams, I-beams, or double T-beams.
Customers interested in this product also viewed
About the brand
Ratings & reviews
Ratings & reviews
5
Based on 1 review
Sort by :
Was at home with me within 3 days. Thank you
Show original review
Frequently asked questions
How long is the remote control cable?
The remote control cable is 240 cm long.
Do I need to use the pulley?
You don't have to use the pulley, However, using it increases the load capacity to 800 kg.
How long can the trolley operate before the overload protection activates?
The engine of the electrical winch has a S3 20% 10 minutes system. One cycle takes 10 minutes. The device runs for two minutes and rests for eight minutes. It does not work in continuous operation.
