Product Number: EX10280045
|Model: WIE-PM-3000

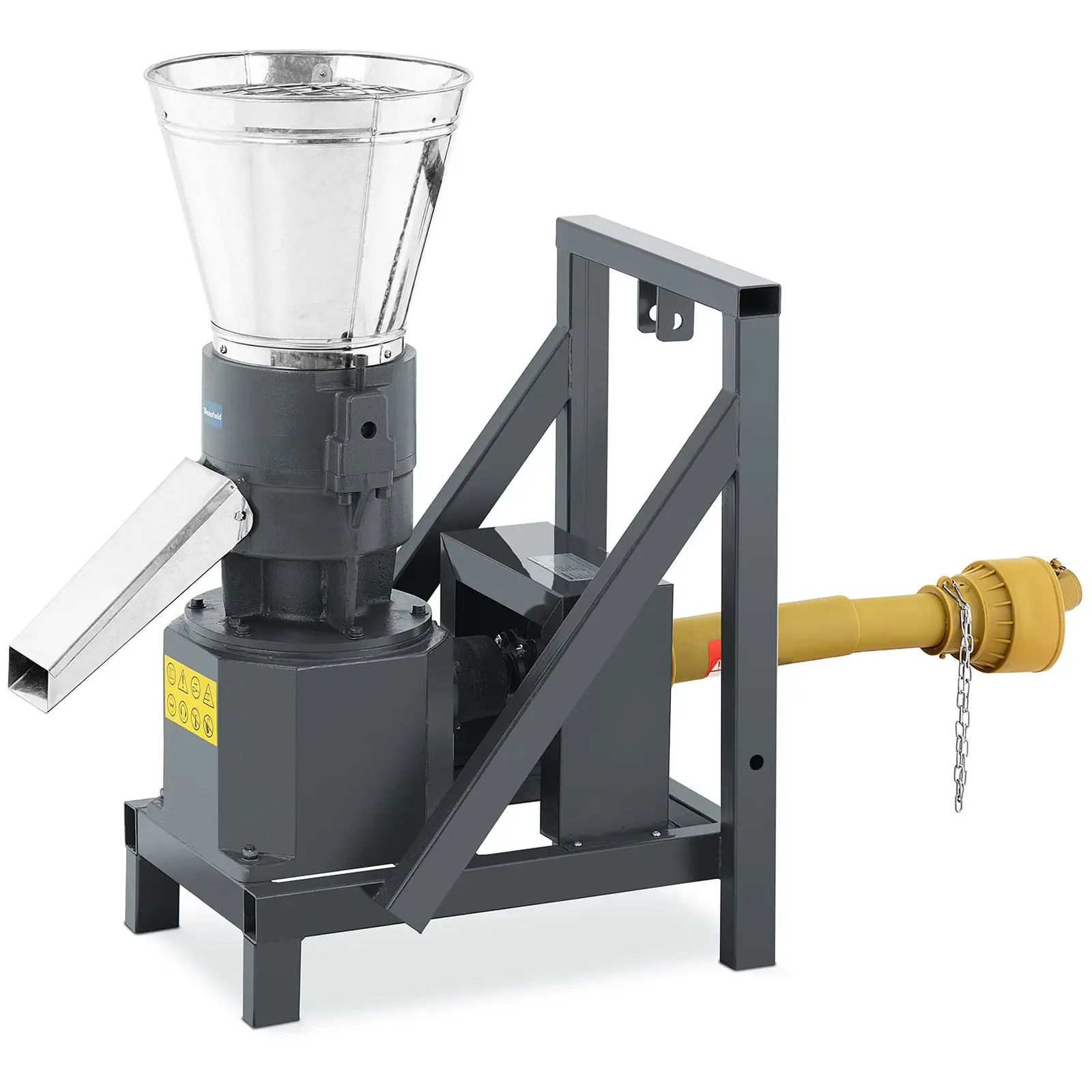

Pellet Machine - max. 400 kg/h - Ø 230 mm - 2 rollers
![Pellet Machine - max. 400 kg/h - Ø 230 mm - 2 rollers (Rotary speed [rpm]: 540)](https://assets.expondo.com/asset/product_photos/10280045_photo_6?twic=v1/contain=104x104)
![Pellet Machine - max. 400 kg/h - Ø 230 mm - 2 rollers (Rotary speed [rpm]: 540)](https://assets.expondo.com/asset/product_photos/10280045_photo_6?twic=v1/contain=1024x500 "Pellet Machine - max. 400 kg/h - Ø 230 mm - 2 rollers (Rotary speed [rpm]: 540)")
![Pellet Machine - max. 400 kg/h - Ø 230 mm - 2 rollers (Rotary speed [rpm]: 540)](https://assets.expondo.com/asset/product_photos/10280045_photo_6?twic=v1/contain=40x40){kind=small}
£1,659.00
Volume discount
Qty
Discount
Per item (gross)
3+
4%
£1,592.64
5+
8%
£1,526.28
10+
12%
£1,459.92
Sold out
Lowest price guaranteed
Key features
- Versatile – creates pellets for feed, fertiliser, or fuel from organic materials
- High productivity – processes 300 to 400 kg/h of feed or 130 - 180 kg/h of wood chips
- Powerful processing – driven by a PTO shaft via the auxiliary drive of a tractor (15 to 28 HP recommended)
- Sustainable production – extended pellet lifespan due to heating at 60 - 80 °C
- User-friendly – compact and simple-to-operate machine
- cost-efficient pellet production – twin-roller technology relies on a mechanically simplified design for reliable and low-maintenance operation with low acquisition and operating costs
Delivery details
Spare parts
Premium Guarantee
User Manual
Technical details
Driveshaft
PTO
Design
Fixed roller type
Die diameter
230 mm
Number of rollers
2
Rotary speed [rpm]
540
Number of dies
1
Emergency stop
No
Lubrication system
Manual
Number of rollers
1
Die hole specification
6 mm
Material
Cast iron
Galvanised steel
Hopper size [mm]
Ø380
Feed production capacity [kg/h]
300 - 400
Colour
Grey
Sawdust capacity [kg/h]
130 - 180
Suitable for or processable materials
Crushed bark
Woodchips
Sawdust
Straw
Leaves
Carton
Peas
Maize
Soy
Wheat
Oats
Hay
Sunflower seeds
Wool
Continuous operating time [h]
24
Operating Temperature [°C]
60 - 80
Dimensions (LxWxH)
88 x 64 x 110 cm
Weight
147 kg
Shipping dimensions (LxWxH)
77 x 54 x 103 cm
Shipping weight
169 kg
Delivery package
- Pellet Machine WIE-PM-3000
- Assembly materials
Product Description
The animal feed pellet press with PTO creates big batches of feed pellets in no time
With the pellet press from Wiesenfield, you can produce up to 400 kg of feed sticks per hour or process up to 180 kg/h of wood chips. Each piece of the raw material should be less than 6 mm in size. This way, you can produce large quantities of pellets for feeding, fertilising, or heating at a low cost. The cylindrical feed pellets contain only the ingredients that correspond to your recipe.
The industrial-grade pellet machine from Wiesenfield
The inserted material is pressed at high pressure through a 230 mm diameter die. The application of pressure and temperatures of 60 - 80 °C generates 6 mm diameter pellets. Heat increases the longevity of the pellets. Thanks to the practical discharge chute made of galvanised sheet steel, you can fill the finished pellets directly into bags or other containers.
The efficient pellet press with user-friendly design
The pellet press is driven by a PTO shaft via the auxiliary drive of a tractor or other utility vehicle with a power rating of 15 to 28 HP. A protective grid (37 x 37 mm mesh) in the hopper prevents foreign objects or hands from entering the press. The durable pellet machine, crafted from solid cast iron, will serve you faithfully for years to come: A must-have for any agricultural business!
Note: Make sure to include the pellet binder in your order (Product number: 10530000). The wheat starch powder makes pressing and storing your pellets easier.
Note on wearing parts: You can use the built-in dies and rollers for pellet presses for up to 300 hours. If they are worn, replace them promptly. Wear parts are excluded from the statutory warranty and the extended warranty. You can find corresponding spare parts in the expondo online shop.
Ratings & reviews
Ratings & reviews
Sort by :
Frequently asked questions
What is the capacity of the feed press?
The pellet machine processes up to 400 kg of feed or up to 180 kg of wood chips per hour into finished pellets.
