Data Logger - Temperature + Humidity

Item number: EX10030315 / Model: SBS-DL-123

Data Logger - Temperature + Humidity

  • Item number: EX10030315
  • Model: SBS-DL-123
  • In the product range since: 2018



£57.00

Prices incl. VAT Shipping costs abroad not included*

Ready to ship today, Delivery time appr. 4-6 workdays**

Data Logger - Temperature + Humidity

The data logger SBS-DL-123 records different data such as temperature, humidity and air pressure at individually adjustable intervals. 16,000 temperature readings and 16,000 humidity readings can be captured and saved to the internal memory. The collected data is transmitted via USB interface to a computer. The most important features are the temperature range -35 to +80 °C, the humidity range of up to 100% and the very large selection of measuring cycles from 2s to 24h. Whether for professional meteorologists and environmental researchers or for home use, the laboratory needs of Steinberg Systems enriches your work and your life.

Precise and reliable - the data logger SBS-DL-123 from Steinberg Systems



The data logger measures the temperature with an accuracy of ± 0.3%. It provides precise values ​​for the humidity with a deviation of ± 3.0%. The device also has a very large memory for up to 32,000 measured values. One half of the device records the temperatures, the other half records the humidity.



Another advantage of this data logger is its high measuring intervals. The device has a frequency between 2 seconds and 24 hours, for both short and long-term measurements. Three coloured LED indicator lights (also called diodes) display the optical communication of the logger.



The delivery includes a battery, the software and a wall mounting. The light and mobile data logger is operated with a 3.6 V lithium battery. After the measuring, simply connect the logger to your PC and transfer the data for evaluation. The software provides graphical representations of the values ​​and can be used for analyses.



The data logger has a low weight and a compact size. You can put the logger in your pocket without it interfering. Dust and dirt are enemies of electronic items. The device therefore adheres to the protection class IP64, and has a dust and splash protection, for a particularly long service life.

Highlights

  • Large measuring interval range - 2 s to 24 h
  • Internal memory for up to 32,000 values
  • Highly precise measurements – temperature ±0,3% / humidity ±3%
  • Compact construction - Small and light
  • USB port for data transmission

Key Facts

Model
SBS-DL-123
Condition
New
Measuring methods
ABS plastic
Power
1 x 3.6 V lithium battery
Measuring data
Temperature Humidity
Temperature range
-35 to +80 °C
Humidity range
0 - 100%
Basic accuracy, temperature
±0.3%
Basic accuracy, humidity
±3%
Max memory capacity, temperature
16,000
Max memory capacity, humidity
16,000
Measuring interval
2s-24h
Protection class
IP64
PC connection part
USB
Dimensions (LxWxH)
1.9 x 3.7 x 12.4 cm
Weight
0.05 kg
Shipping dimensions (LxWxH)
16.5 x 11 x 5 cm
Shipping weight
0.2 kg

Is a software for reading the data included in the delivery?

Yes, the necessary software is included in delivery.

Are the necessary batteries included in delivery?

Yes, a 3.6 V lithium battery is included in delivery.

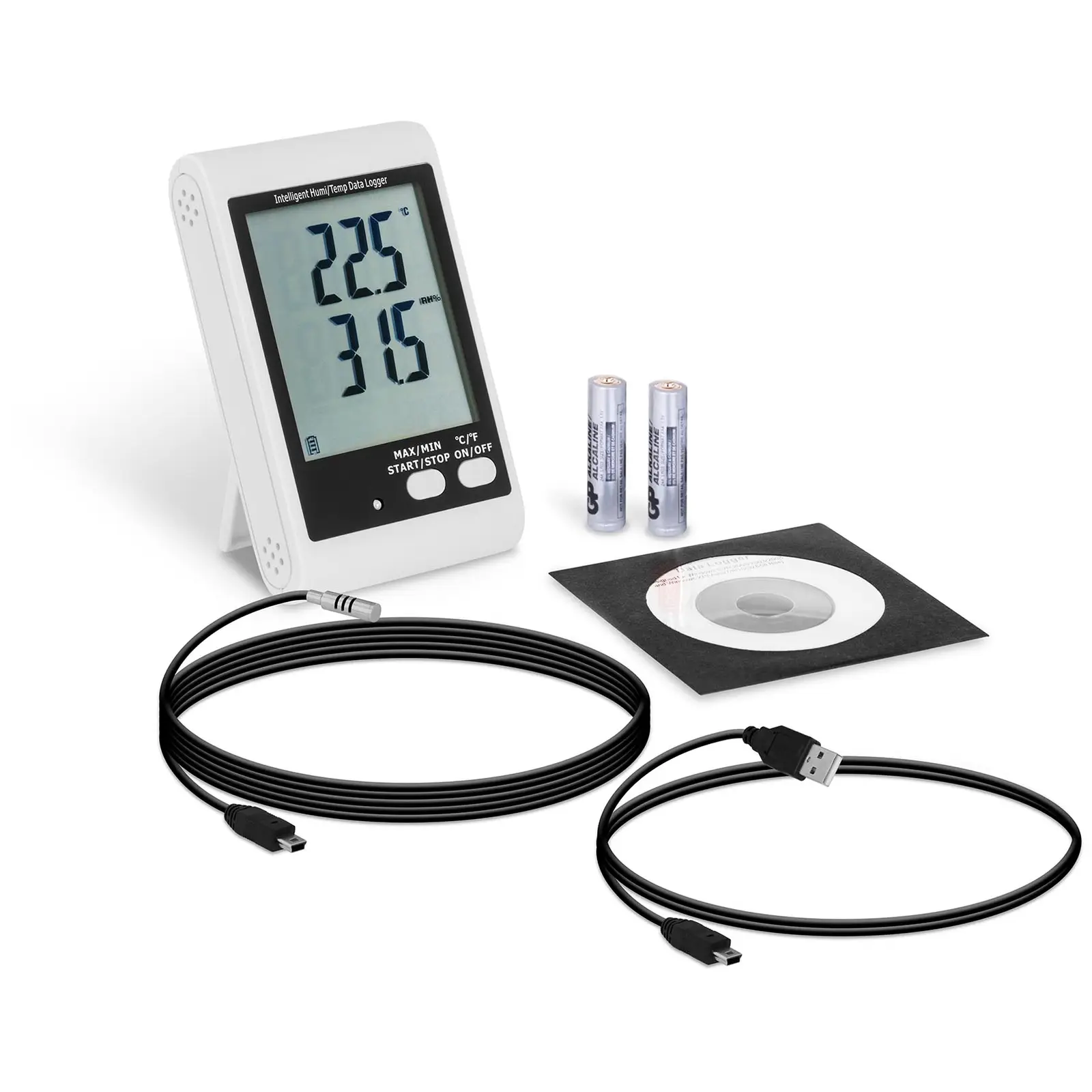

  • Data logger SBS-DL-123
  • Wall mounting
  • Software CD
  • 3.6 V lithium-Battery
  • Instruction manual
