Plasma Cutter - 85 A - 400 V - pilot arc

£679.⁰⁰ Prices incl. VAT Shipping costs abroad not included*

(3)

Preview: Plasma Cutter - 85 A - 400 V - pilot arc

Plasma Cutter - 85 A - 400 V - pilot arc

Play Video

360° photo

£679.⁰⁰

Prices incl. VAT Shipping costs abroad not included*

Free shipment to UK
?

Ready to ship today, Delivery time appr. 1-2 weeks**
30 days return service
?
3 years guarantee

Product Highlights

Cutting current: 20 - 85 A
Cutting depth up to 27 mm
Pilot arc
2 T / 4 T switch
400 V

S-Plasma 85H—modern welding technology guarantees high work progress

The cutting current reaches 85 amps at its peak, which is achieved with a duty cycle of 60 percent. With a duty cycle of 100 percent, a high 65.8 amps are still possible. These performance values are sufficient to cut workpieces up to 27 millimetres thick. The plasma cutter can cut tool steels as well as stainless steel and other high-alloy steels. Even aluminium, copper and titanium can't resist the powerful plasma arc of the S-Plasma 85H.

Show moreShow less

The Stamos tool offers two different working modes so that maximum progress can be achieved with every task. In 2-stroke mode, the torch will run for as long as the power switch is pressed. In 4-stroke mode, a single tap is sufficient to activate the burner and another tap to switch it off. This mode provides countless advantages for continuous operation. The handle position on the torch can be varied during work to reduce fatigue and physical strain.

Show moreShow less

The Stamos plasma cutter works with three-phase alternating current at an operating voltage of 400 V. This makes it the ideal tool for automotive workshops, commercial metalworking companies and industrial production. In addition, it also supports DIY enthusiasts in their demanding renovation and repair projects.

Show moreShow less

The torch is ignited using a pilot plasma arc. The activity of the burner is regulated by a fast-response electromagnetic valve. To prevent oxidation or deformation of the workpiece after a cut, the air supply continues for a definable period of time. The post-flow time can be pre-set directly at the power unit between 2 and 15 seconds.

Show moreShow less

The air is also cooled by the post-flow of the burner to avoid the risk of damage. The base unit is also equipped with a powerful fan cooling system to prevent overheating. However, if the operating temperature does experience a sudden increase, it will trigger the overheat protection.

Show moreShow less

Problems with the operating temperature as well as other malfunctions are indicated by an LED on the control unit. The LED display for the cutting current and the cutting current controller are also located in this clearly visible space on the front of the unit. The cutting current can reach between 20 and 85 amps and is thus well above the performance data of the competition. With a product weight of 20 kilograms, the plasma cutter has sufficient mass to maintain safe footing even in a rugged working environment.

Show moreShow less

Highlights

Excellent performance values—85 amps at 60 percent duty cycle
Separate working modes for short-term and continuous operation, powerful cooling of the power unit, the torch and the workpiece
Pilot plasma arc ignition
Cutting depth of up to 27 millimetres
Easy-to-read LED display

Plasma Cutter - 85 A - 400 V - pilot arc

The plasma cutter S-Plasma 85H from Stamos Selection is specifically tailored for the demanding German market. It offers high-quality plasma technology in conjunction with functionality that is convincing in trade and industry. But even ambitious do-it-yourself enthusiasts will find the right tool in the cutter to carry out their repairs and renovations at a high level.

Model

S-PLASMA 85H

Item number

10020044

Function

Plasma cutting

Condition

New

Input voltage

400 V three-phase

Input frequency

50 Hz

Rated input current

13.2 A

Max. input current

18.6 A

Rated input power

8.6 kVA

Max. input power

13.2 kVA

Load-free voltage

280 V

Cutting current

20 - 85 A

Duty cycle

60 %

Cutting current at 100 percent duty cycle

65.8 A

Cutting current at 60 percent duty cycle

85 A

Air post-flow time

2 - 15 sec

Housing cooling

Fan

Torch cooling

Air

Ignition

Pilot plasma arc

Length, grounding cable

4 m

Length, plasma cable

5 m

Length, compressed air hose

4 m

Length, power cord

3.8 m

Max. cutting depth

27 mm

Cutting depth for high-quality cuts

18 mm

Cutting width

1.2 mm

Air flow rate

175 L/min

Required air pressure

5.5 bar

Insulation class

Protection class

IP20S

Dimensions (LxWxH)

55 x 37 x 21 cm

Weight

20.1 kg

Shipping dimensions (LxWxH)

65 x 36.5 x 44 cm

Shipping weight

27.6 kg

Technical drawing

Download PDF

Delivery Package

Plasma cutter S-PLASMA 85H
Plasma cable assembly: 4 m
Air hose: 4 m
Grounding cable: 4 m

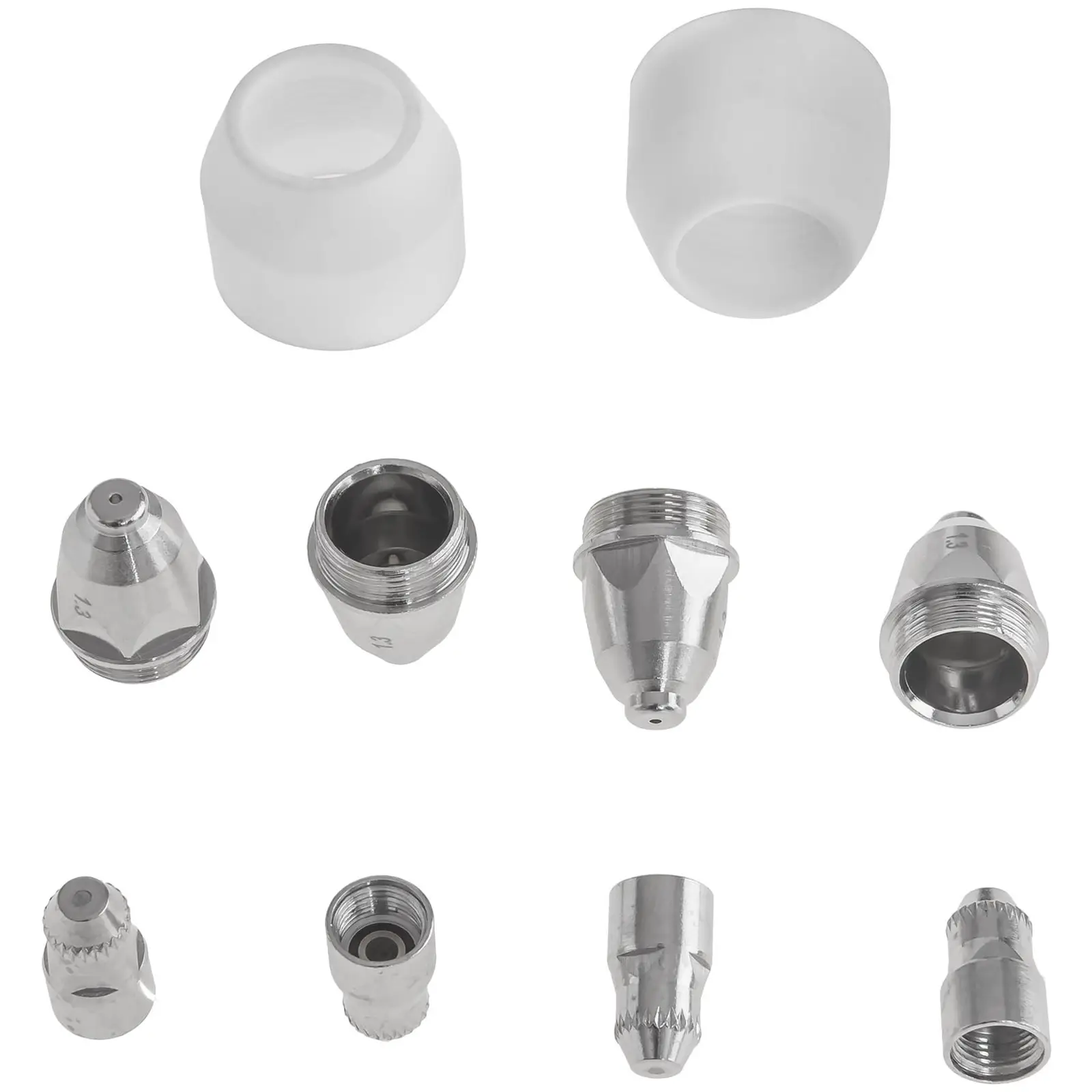

6 cutting nozzles
6 plasma electrodes
Ceramic cap for plasma
Ceramic ring
Pressure gauge and pressure regulator
Allen key
Hose cover
2 clamp rings
Instruction manual

IGBT

IGBT = insulated-gate bipolar transistor. IGBT is a bipolar transistor with an insulated gate electrode. This semi-conducting device is being increasingly used in power electronics because it combines the advantages of two transistor types: the easy controls of the field effect transistor and the fast switching and high breakdown voltage of the bipolar transistor. The IGBT also offers some robustness against short circuits because it limits the electrical continuity. IGBTs are a further development of MOSFET technology.

Show moreShow less

VENTILATORS

Powerful fans ensure an optimal removal of heat from the unit.

GAS/AIR CONNECTION

For plasma cutting, a gas is required with which the molten metal is blown away from the work surface. Compressed air is a common solution for this. For this purpose, the plasma cutter has a compressor connection.

Show moreShow less

EARTHING SYSTEM

On the back of every welding machine is a screw with an earthing mark. Before use, earth the unit via a cross-section cable, which must be at least 6 mm².

GROUND TERMINAL CONNECTOR

CUTTING TORCH CONNECTION

SUPPLY VOLTAGE

This device works with a 3-phase connection (400 V +/- 10 %).

WELDING CURRENT

GAS POST-FLOW TIME

The time after the weld is finished in which gas continues to flow from the torch; this cools the burner and protects the weld from oxidation.

2-STROKE

Start the weld by placing pressure on the torch button. Stop the process by releasing the button.

4-STROKE

By pressing the torch button the solenoid valve opens. allowing the gas to flow in. The gas pre-flow ignites the arc at the pre-set current. Releasing the burner button initiates a rise in the current to that of the pre-set welding current. The welding process stops once you press the burner button again.

Show moreShow less

PLASMA CUTTING

The plasma arc melts the metal and the kinetic energy of the compressed air blows the metal aside.

POWER SWITCH

DISPLAY

Shows the welding / cutting parameters.

OVERLOAD / FAULT LED

The LED light indicates overheating or a malfunction.

PRESSURE GAUGE (MANOMETER)

Shows the value of compressed air the compressor delivers to the plasma cutter. The plasma cutter has a pressure reducing valve which regulates the air pressure.

PILOT IGNITION

A pilot arc is ignited by pressing the torch's trigger. Thus, grates can be cut.
