Product Number: EX10030203

|

Model: SBS-ML 500

Lifting Magnet - 500 kg

On Sale
£149.00 £169.00
Limited time offer £124.17 net (20% VAT excluded)
Qty
Discount
Per item (gross)
3+
5%
£141.55
5+
10%
£134.10
10+
15%
£126.65
Back in stock soon
Lowest price guaranteed
Steinberg Systems logo
Key features
  • Compact and powerful lifting magnet
  • Fast, reliable and economical
  • Low weight / Resistant to demagnetisation
  • Smooth operation / Magnetism can be switched on and off by lever operation
  • Completely without electricity / Robust and maintenance free
  • Highest safety levels due to a three times higher breakaway force / For round and flat materials
Delivery details
Spare parts
Premium Guarantee

Bogdan 9 months ago

The magnet is made very well, works well in everyday use, great price to quality ratio.

Technical details

Lifting Magnet - 500 kg Lifting Magnet - 1000 kg Lifting Magnet - 100 kg Lifting Magnet - 300 kg Lifting Magnet - 600 kg Lifting Magnet - 2000 kg
(3)
£149.00
Lifting Magnet - 500 kg
Currently seen
(8)
£269.00
Lifting Magnet - 1000 kg
(2)
£79.00
Lifting Magnet - 100 kg
(10)
£109.00
Lifting Magnet - 300 kg
(12)
£159.00
Lifting Magnet - 600 kg
(0)
£639.00
Lifting Magnet - 2000 kg
Dimensions (LxWxH)
27 x 12 x 11.5 cm
31.5 x 13.5 x 21 cm
13 x 6.5 x 10.5 cm
20.6 x 9.4 x 9.3 cm
26 x 12 x 17 cm
43 x 16 x 13.5 cm
Capacity for uneven surfaces
165 kg
350 kg
30 kg
100 kg
200 kg
666 kg
Colour
Red
Red
Red
Red
Red
Red
Maximum load
500 kg
1000 kg
100 kg
300 kg
600 kg
2000 kg
Maximum strength
1500 kg
3000 kg
300 kg
900 kg
1800 kg
6000 kg
Compare more attributes

Product Description

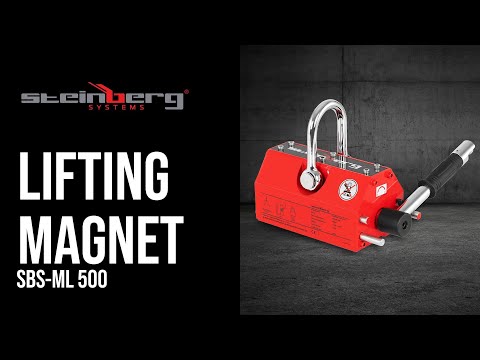

Lifting Magnet - 500 kg

The SBS ML 500 hand-operated lifting magnet / permanent lifting magnet -- 500 kg from Steinberg System is ideal for the moving and storage of almost all ferromagnetic loads, such as steel related products, for example, weights, components, scraps and plates. In addition to the convenient and easy use of the lifting magnet, no additional operating costs are incurred therefore efficiency and productivity can be increased significantly.
By using a high-energy neodymium magnet, which is considered the strongest permanent magnet on Earth, the SBS ML 500 from Steinberg System is able to lift even the heaviest of loads within the range of 500 kg.
Unlike forklift trucks or gripping arms, the work piece is held exclusively by magnetism, whereby the surfaces are not damaged but remain protected and secure. Once the magnet is placed upon the load which requires moving, you need only to operate the lever to activate the magnetic field. When finished, magnet can be deactivated by the same lever. Therefore transport can be transported simply, easily and safely.
 A specially designed safety mechanism also prevents the loosening of the actuating lever.The SBS ML 500 is a fully functioning device without the constraints and restrictions and limitations of cables, plug sockets, recharge or additional maintenance.  Also the neodymium magnets are extremely robust and wear-free.
Although the lifting magnet is very compact it is capable of loads of up to 500 kg, as long as the load is not affected by coatings or dirt. Safety is provided by the enormous breakaway force of 1500 kg. Another advantage of using a lifting magnet is that the materials can be sorted during use into ferromagnetic and non-ferromagnetic parts.  Only magnetic products such as auto parts, or steel scrap, are lifted. The magnetic lifter SBS ML 500 from Steinberg System is ideal for flat and also round and cylindrical objects.
