Lifting Magnet - 100 kg
£115.00 Prices incl. VAT
Shipping costs abroad not included*

Lifting Magnet - 100 kg

Manufacturer: Steinberg Systems | Item number: EX10030201 | Model: SBS-ML 100

Lifting Magnet - 100 kg
Lifting Magnet - 100 kg
Lifting Magnet - 100 kg
Lifting Magnet - 100 kg
Lifting Magnet - 100 kg
360° photo
Tap to open gallery
£115.00

Prices incl. VAT
Shipping costs abroad not included*

  • Free shipment to UK

    ?

    Ready to ship today, Delivery time appr. 1-2 weeks**

  • 30 days return service

    ?
  • 3 years guarantee

Product highlights

  • for use within industrial, logistical and construction sectors
  • 100 kg lifting capacity
  • 300 kg traction
  • Manual lever operation
  • Compact and Powerful

  • Compact and powerful lifting magnet
  • Fast, reliable and economical
  • Low weight
  • Resistant to demagnetisation
  • Smooth operation
  • Magnetism can be switched on and off by lever operation
  • Completely without electricity
  • Robust and maintenance free
  • Highest safety levels due to a three times higher breakaway force
  • For round and flat materials

Lifting Magnet - 100 kg

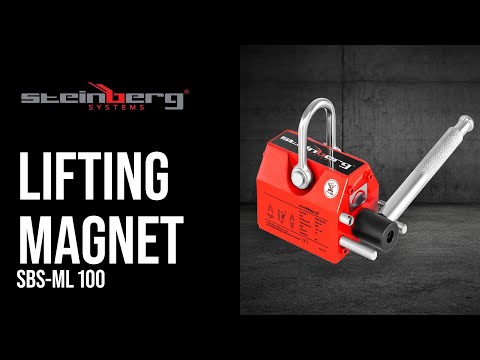

The SBS ML 100 hand-operated lifting magnet / permanent lifting magnet -- 100 kg from Steinberg System is ideal for the moving and storage of almost all ferromagnetic loads, such as steel related products, for example, weights, components, scraps and plates. In addition to the convenient and easy use of the lifting magnet, no additional operating costs are incurred therefore efficiency and productivity can be increased significantly.

By using a high-energy neodymium magnet, which is considered the strongest permanent magnet on Earth, the SBS ML 100 from Steinberg System is able to lift even the heaviest of loads within the range of 100 kg.

Unlike forklift trucks or gripping arms, the work piece is held exclusively by magnetism, whereby the surfaces are not damaged but remain protected and secure. Once the magnet is placed upon the load which requires moving, you need only to operate the lever to activate the magnetic field. When finished, magnet can be deactivated by the same lever. Therefore transport can be transported simply, easily and safely.

 A specially designed safety mechanism also prevents the loosening of the actuating lever.The SBS ML 100 is a fully functioning device without the constraints and restrictions and limitations of cables, plug sockets, recharge or additional maintenance.  Also the neodymium magnets are extremely robust and wear-free.

Although the lifting magnet is very compact it is capable of loads of up to 100 kg, as long as the load is not affected by coatings or dirt. Safety is provided by the enormous breakaway force of 300 kg. Another advantage of using a lifting magnet is that the materials can be sorted during use into ferromagnetic and non-ferromagnetic parts.  Only magnetic products such as auto parts, or steel scrap, are lifted. The magnetic lifter SBS ML 100 from Steinberg System is ideal for flat and also round and cylindrical objects.

Model
SBS-ML 100
Article number
3201
Condition
New
Lifting load
100 kg
Maximum strength
300 kg
Capacity for uneven surfaces
30 kg
Colour
Red
Manual lever operation
Yes
Dimensions (LxWxH)
13 x 6 x 7 cm
Weight
2.9 kg
Shipping dimensions (LxWxH)
21 x 16 x 16.5 cm
Shipping weight
3.2 kg
Technical drawing
